Trampoline arc tube robot automatic production line (square tube)

Main parameters of auto work cell :

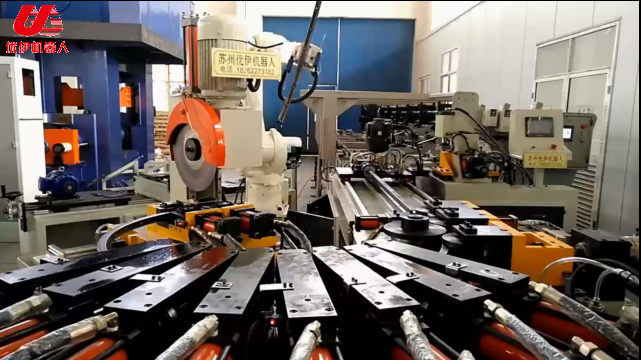

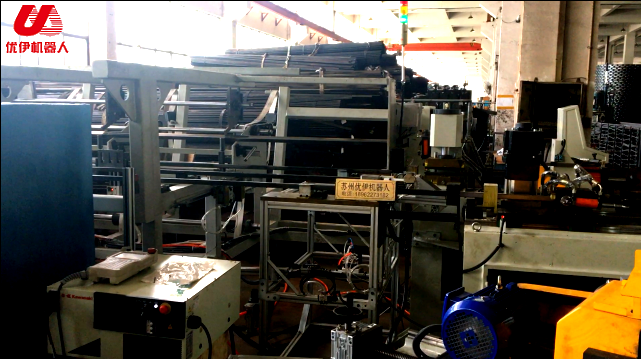

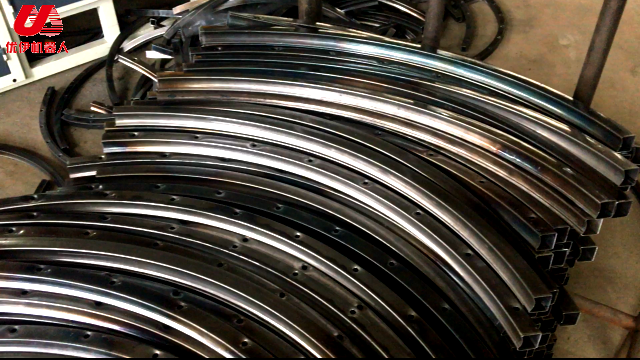

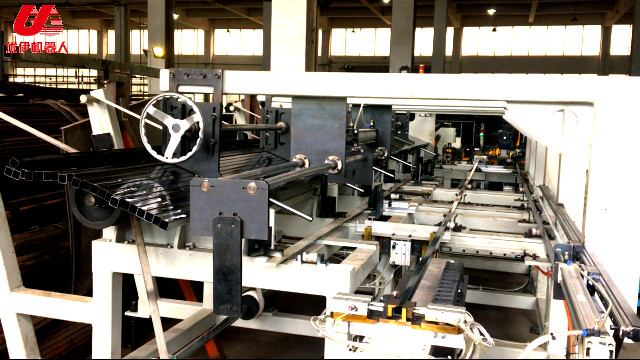

1) ) feeding machine index: 5.5-6.5 m, double station, one station for the pipe shrinking machine, the second station for bending the bending machine;

2) Weld detection of pipe fittings, weld positioning of pipe welds;

3) Model of pipe shrinking machine: ue-sg40 pipe shrinking machine, the 6-meter long pipe is sent to the pipe bending machine for pushing and bending after being shrunk by the pipe shrinking machine;

4) After the continuous pushing and bending of the pipe bender, 8 hole positions are punched at one time;

5) The automatic pipe cutting machine is used to saw the circular pipe fittings (sawing and punching at the same time);

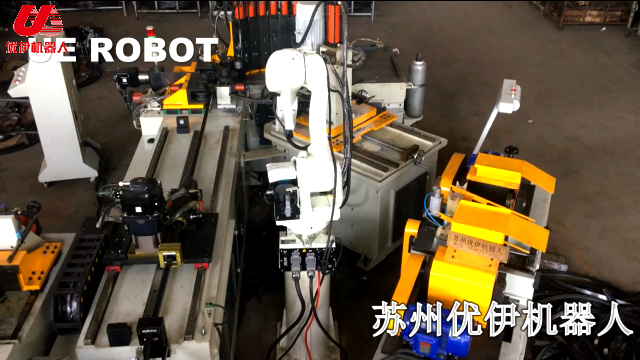

6) After the pipe cutting is completed by the automatic pipe cutting machine, Kawasaki robot grabs the cut pipe material to unload the pipe fittings and transport them to the double head deburring machine;

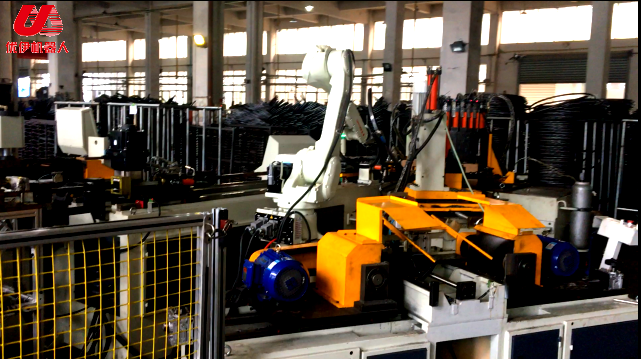

7) After deburring, the special machine will automatically discharge the material to the material box after deburring at both ends of the pipe.

8) The main control system controls the whole process of each unit of the system: automatic feeding machine, automatic pipe shrinking machine, automatic pipe bending machine, automatic eight position punching machine, automatic pipe cutting machine, Kawasaki rs-010n robot and two end deburring machine to coordinate production!
