Auto work cell for chair armrest tube

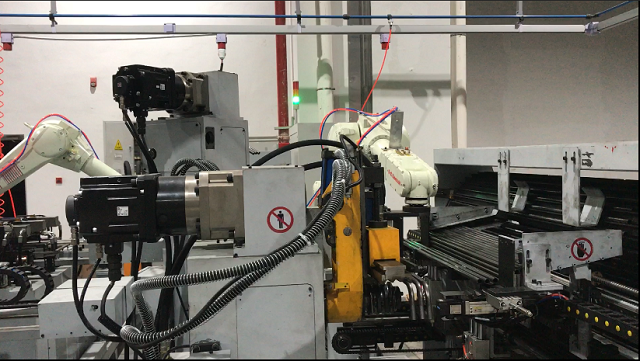

 Robot feeding tube to bender

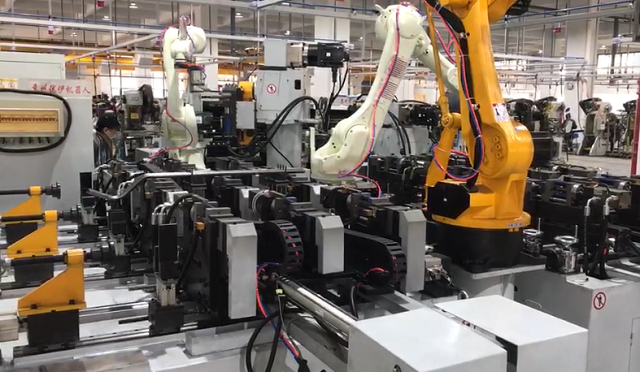

 Robot transfer pipe to punching sets

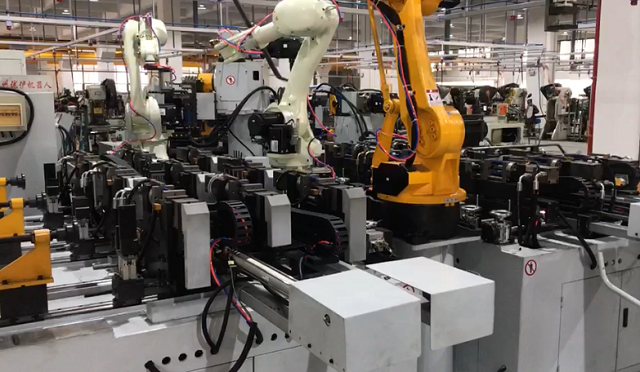

Punching sets punches three pipes together

Robot unloads finished pipe fittings

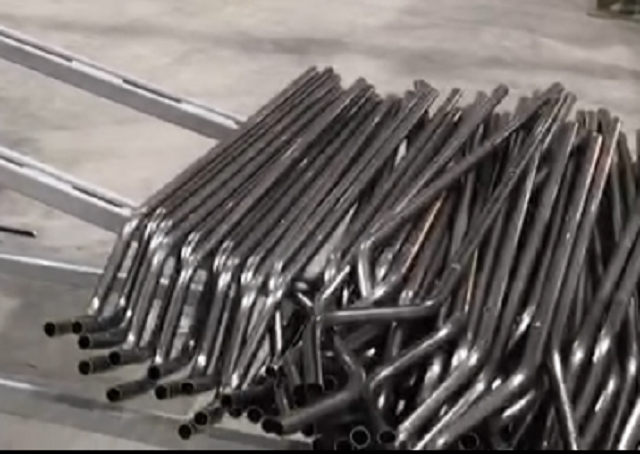

Finished pipe fittings

Automatic production line of beach chair arm tube

Main Feature:

1) About 6-7 people can be saved in the project of beach chair armrest tube. The labor saving of enterprises is obvious and the economic benefits are obvious;

2) Processing efficiency: three tubes less than 15 seconds, average single tube beat < 5 seconds;

3) Pipe size: 16mm in diameter and 1200mm in length

4) Processing method: manually put a batch of straight pipes into the feeding machine bin, and the conveying system uses a group of three pipes to feed the servo automatic double head bending machine;

5) Robot model: Kawasaki rs-010n 2 sets, function: the robot carries the pipe from one end of the double head pipe bender to another pipe bending machine head to complete the second bending; the second robot transports pipe fittings from the second bending head to (three pipes together) to two groups of punching machines;

6) The punching machine punches the three pipe fittings in combination, and then the cutting robot (domestic four axis robot) unloads the finished pipe to the material rack;

7) The general control adopts adaptive intelligent design, which can adjust the production rhythm with the speed of the robot;
