SW-CNC40-4A Double Head Pipe Bender

Hits:
Main Fertures Double head pipe bender model: ue-sw40 CNC-4A (Mitsubishi 4 axis servo motor drive)Pipe bending capacity: 40 5Bend radius: 38-200 mmCenter distance of double bending machine head: 300-1650
Order hotline:0512-58616755
Consult immediately

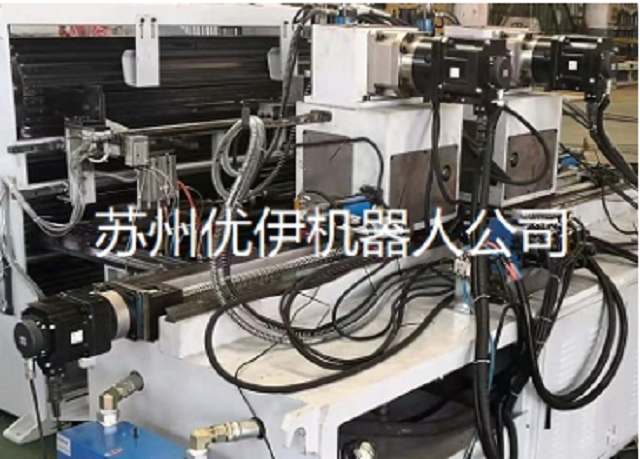

SW-CNC40-4A Double Head Pipe Bender



Main Fertures

Double head pipe bender model: ue-sw40 CNC-4A (Mitsubishi 4 axis servo motor drive)

Pipe bending capacity: 40.5

Bend radius: 38-200 mm

Center distance of double bending machine head: 300-1650

Moving speed of dual head: 0.9m/s

Bending speed: 65 degrees / S

Bending angle range: screen digital adjustment (need to avoid physical interference area and blanking area)

Touch screen: 7-inch (via Lun Tong) (can be equipped with 10 Inch Touch screen, options)

Servo motor: two axis wheel mold drive + two axis head movement (Mitsubishi servo motor)

Tank volume: 120L

Total power: 11-15kw (depending on the number of servo motor shafts)

Volume: 2700x900x1300

characteristic:

*Mitsubishi PLC control, Ethernet connection, manual, automatic, half cycle, full cycle for users to choose.

*It can be equipped with automatic feeding and unloading mechanism (special machine) or industrial robot (double pipe feeding and blanking can be used for some pipe types and pipe diameters);

*Due to the servo drive, the U-tube can bend various angles and rectangular frames. The head bay can be adjusted by servo control, and the U bending angle can be adjusted on the screen. It is easy to operate and maintain.

*The control points of hydraulic system are reduced to a lower level (only the hydraulic system is used for clamping and auxiliary pushing of pipe fittings) to reduce oil pollution;

*The bending angle is fully digitized, and the bending accuracy is controlled by servo system, which does not change with the ambient temperature. Compared with the double pipe bending machine with traditional hydraulic system, the precision and quality are greatly improved.


四轴伺服全自动双头弯管机基本参数:

双头弯管机机型:UE-SW40 CNC-4A(三菱四轴伺服电机驱动)

弯管能力:φ40 X 1.5()

弯管半径:38-200mm

双弯机机头中心距:300-1650

双机头移动速度:0.9m/S

弯管速度: 65度/S

弯曲角度范围:屏幕数字调整(需避开模具物理干涉区和下料区)

触摸屏:7寸(威纶通)(可配10寸触摸屏,选项)

伺服电机:两轴轮模驱动+两轴机头移动(三菱伺服电机)

油箱容积:120L

总功率:11-15KW(视配置伺服电机轴数)

体积:2700X900X1300

特点:

* 三菱PLC控制,以太网连线,手动、自动、半循环、全循环多种可供用户选择。

* 可选配自动上料和下料机构(专机),也可配工业机器人上料和下料(部分管型和管径可以双 管上料和下料);

* 由于采用伺服驱动,U形管可弯曲多种角度,可弯曲各种矩形框架,机头开间可伺服数控调整,U弯曲角度屏幕上调整,随心所欲,操作简单,维护方便。

* 液压系统控制点减少到较低程度(仅保留管件夹紧和辅推采用液压系统),减少油污染;

* 弯曲角度完全数字化,弯曲精度由伺服系统控制,不随环境温度变化而变化。相对传统液压系统的双头弯管机,精度和质量得到很大提高。
