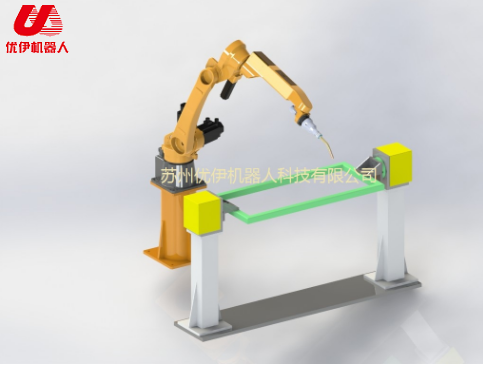

Double seat positioner of welding robot
Double seat positioner of welding robot
Description of welding robot double seat positioner:
A) Parameters of double seat welding positioner: double seat Bay: 1200-2000mm
B) Double seat welding positioner load: 300-800kg
C) Rotation speed rpm: 0.025-0.5
D) Turnover speed rpm: 0.1-0.5
E) Working face turnover angle: - 180 ~ + 180
F) Driving mode of working face: servo motor + RV Reducer
The double seat welding positioner is suitable for welding all kinds of rotary workpieces such as shafts, plates, cylinders, pipe fittings, school seats, steel pipe furniture, etc. The worktable is made of casting finish machining, which is not easy to be damaged by welding spatter. The worktable is engraved with an average distance positioning line, and is equipped with a number of T-slots. It is very convenient and simple to install various positioning and clamping mechanisms. The rotary mechanism of the double seat worktable adopts servo motor, which has the characteristics of wide speed range, stable operation and high precision. The turnover of double seat positioner adopts RV Reducer to rotate, which can turn at a uniform speed within 360 degrees. The turnover torque is large and the precision is high. The servo motor can be equipped with self-locking function, with strong locking ability and reliable positioning. The machine body adopts double seat structure, and the overall stability of the equipment is good. It can be fixed on the foundation or on the iron plate.
Suzhou Youyi Robot Technology Co., Ltd
Mobile:189-1569-8967
E-mail:kevin818@126.com
Adress:No.16 Zhenfeng Road, Nanfeng Town, Zhangjiagang City, Jiangsu Province
