Main Features

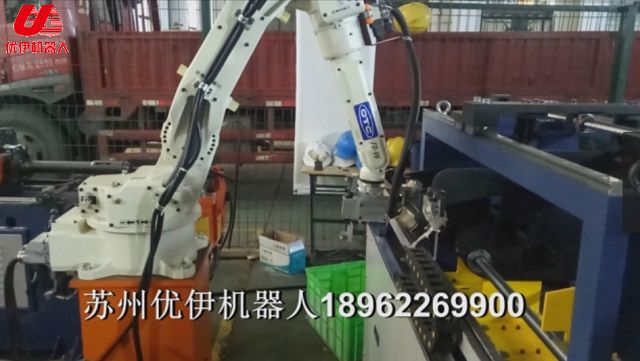

A. Robot model: a Japanese OTC 6kg robot, for pipe loading and unloading;

B. Pipe bender model: ue-dw-38cnc-3a-2s), for pipe bending production;

C. Automatic control system of main control system in Suzhou general control company;

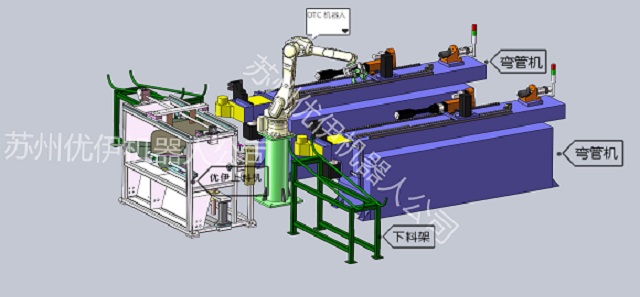

D. The automatic production line can realize self-adaptive matching, and automatically match the beat of each equipment in the system;

E. Pipe length range: 300-20000mm (customizable);

F.  Pipe diameter range: 12-80mm (customizable);

G. Weld inspection:(customizable);

H. Material: carbon steel, stainless steel, aluminum, copper, etc;

I. Equipment Color: spray paint according to customer requirements;

J. Configuration of pipe bender: in principle, new CNC full-automatic pipe bender shall be configured, and automatic production line can also be configured for upgrading existing fully automatic bending machine in good condition;

K. According to the size of the feeding machine, the volume of the feeding machine is 250.
